Product Description：
Part No：ADATC-NL4 series - ATC Blade type Fuse 58V (High-Pressure type)
Interrupting Rating: 1000A @ 80 VDC
Rated Current：1A \ 2A \3A \4A \ 5A\7.5A \10A\15A \20A\25A\30A\35A\40A
Rated Voltage：58V
Operating Temp Range：-40℃~200℃
Housing material：Nylon
Terminal material：Copper
Surface plating：Tin-plating
Operating temperature range：-40°C~125°C
Safety Certification：UL - E317400
Features:
Standards: ROHS and UL 248 standard fuse.
The housing is made of nylon material, with a temperature resistance of around 200 degrees.
Withstand voltage 58V.
The terminal surface is tin-plated, with good tin coating effect.
The current is printed on the bottom, so it can still be easily identified even when inserted in the fuse box.
Time-Current Characteristics：
| % of Rating | Opening Time | |
| MINI | MAX | |
| 110 | 4H | / |
| 135 | 0.5s | 300s |
| 200 | 0.15s | 5s |
| 350 | 0.080s | 0.250s |
| 600 | 0.030s | 0.100s |
Part Number | Current Rating | Voltage Rating (VDC) | Typ. Voltage Drop | Cold Resistance | I2t | Housing Color |
ADATC-NL5-01 | 1A | 58V | 108mΩ | Black | ||
ADATC-NL5-02 | 2A | 58V | 45.0mΩ | Grey | ||
ADATC-NL5-03 | 3A | 58V | 28.0mΩ | Purple | ||
ADATC-NL5-05 | 5A | 58V | 22.5mΩ | Tan | ||
ADATC-NL5-7.5 | 7.5A | 58V | 16.5mΩ | Brown | ||
ADATC-NL5-10 | 10A | 58V | 11.5mΩ | Red | ||
ADATC-NL5-15 | 15A | 58V | 6.80mΩ | Blue | ||
ADATC-NL5-20 | 20A | 58V | 4.30mΩ | Yellow | ||
ADATC-NL5-25 | 25A | 58V | 3.10mΩ | Clear | ||
ADATC-NL5-30 | 30A | 58V | 2.30mΩ | Green | ||
ADATC-NL5-35 | 35A | 58V | 1.90mΩ | Light green | ||
ADATC-NL5-40 | 40A | 58V | 1.40mΩ | Orange |

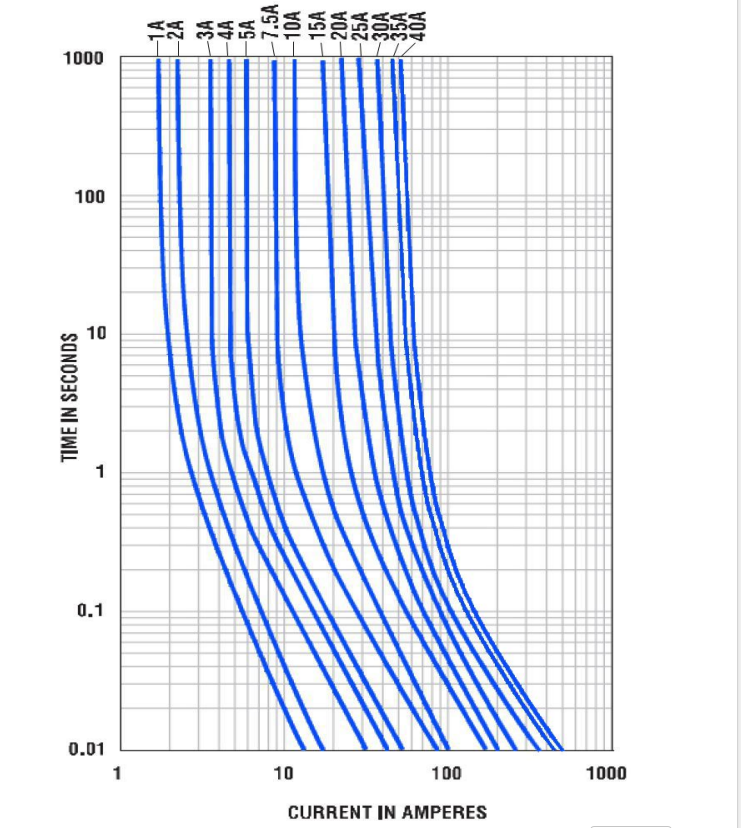

Temperature Rerating Curve:

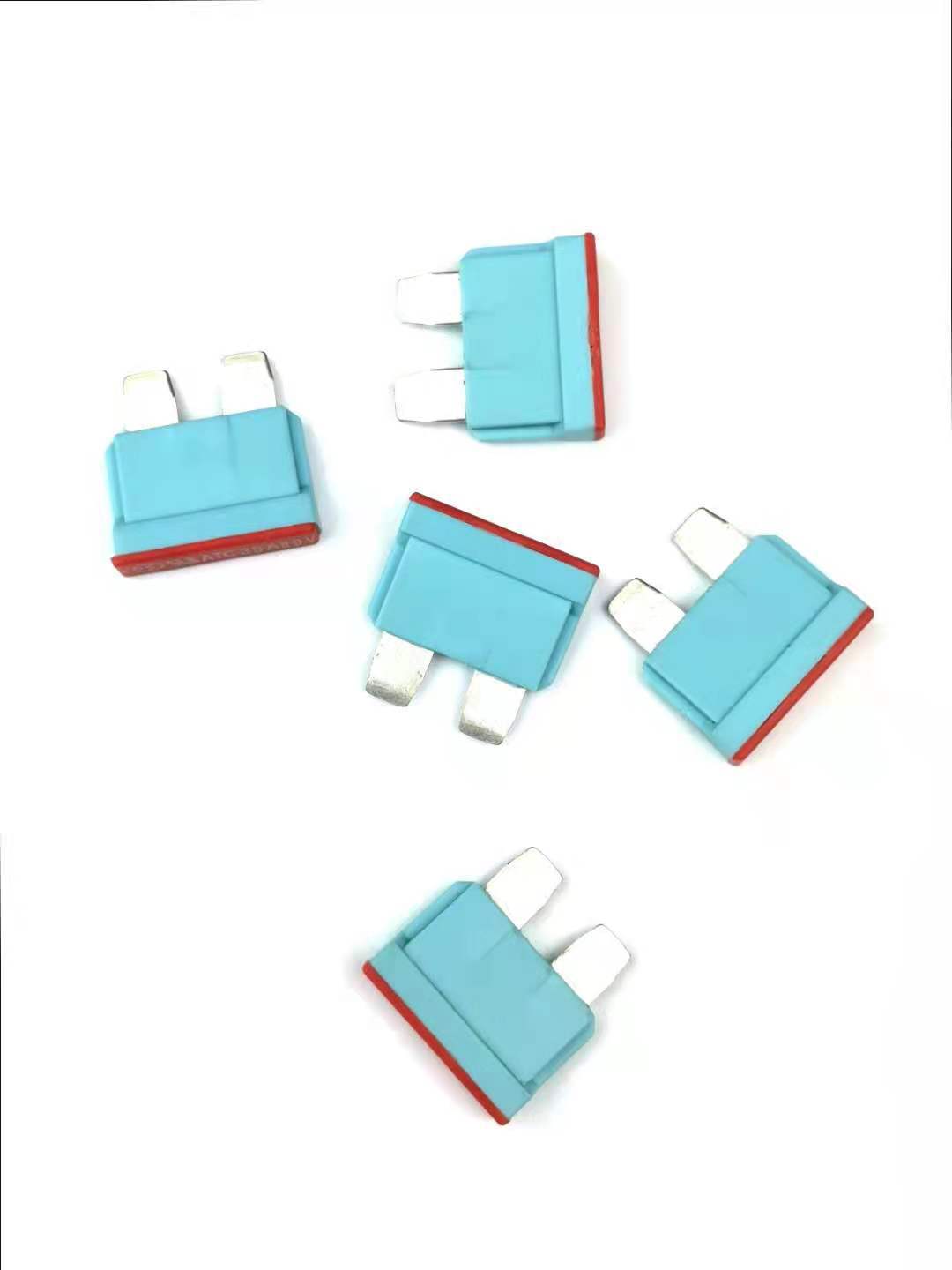

Product Picture:

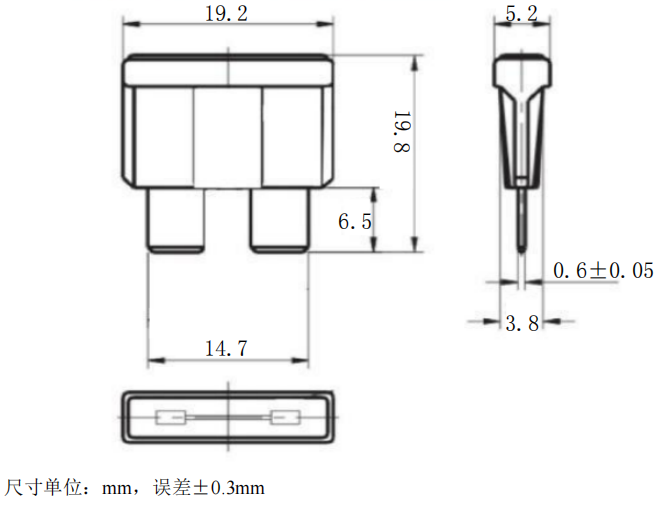

Product Dimensions:
Specification (download):
